146E
Energy Efficient
Motors
Quick Screen Replacement
Expanded Shaker
Deck

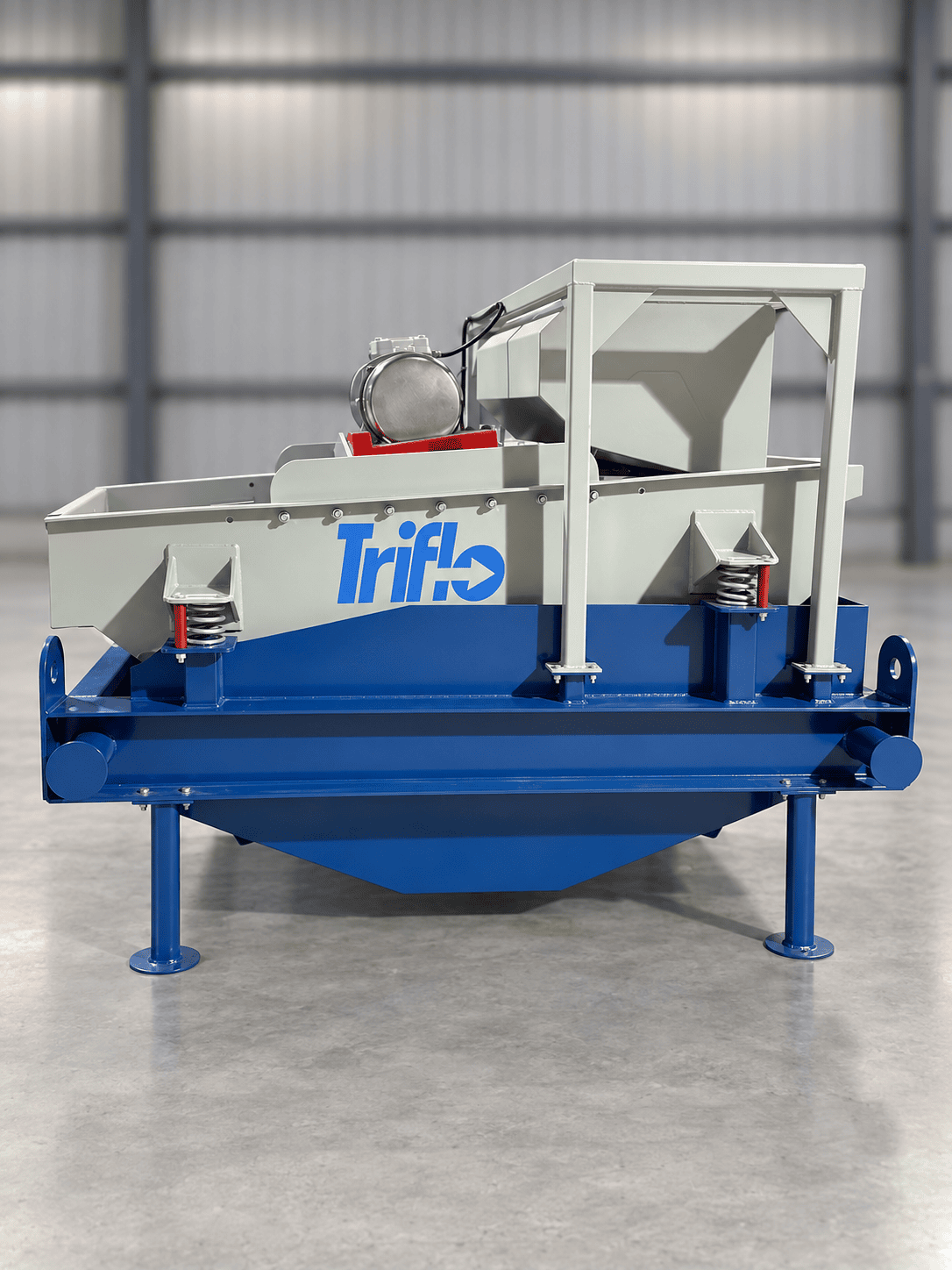

146E

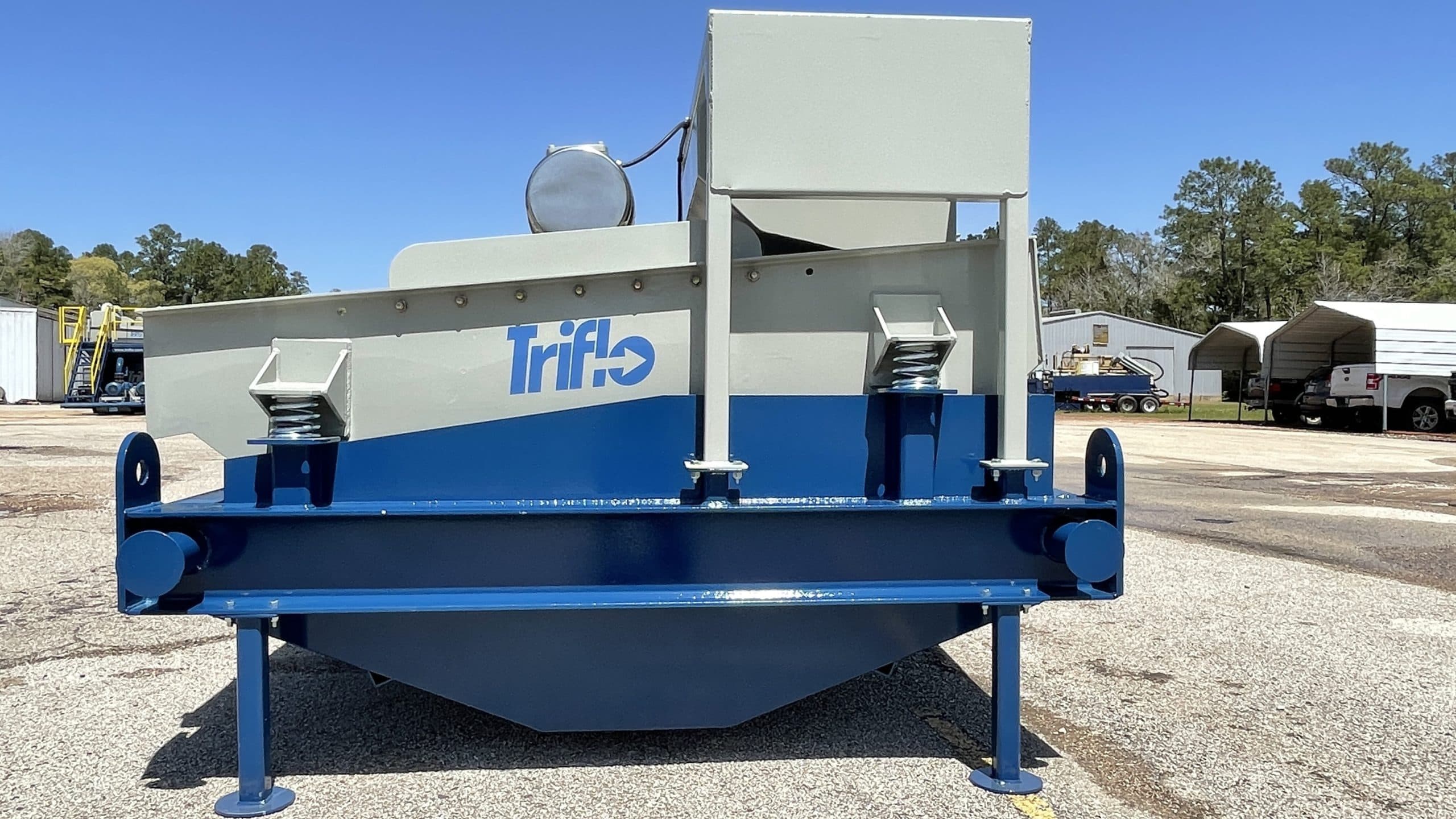

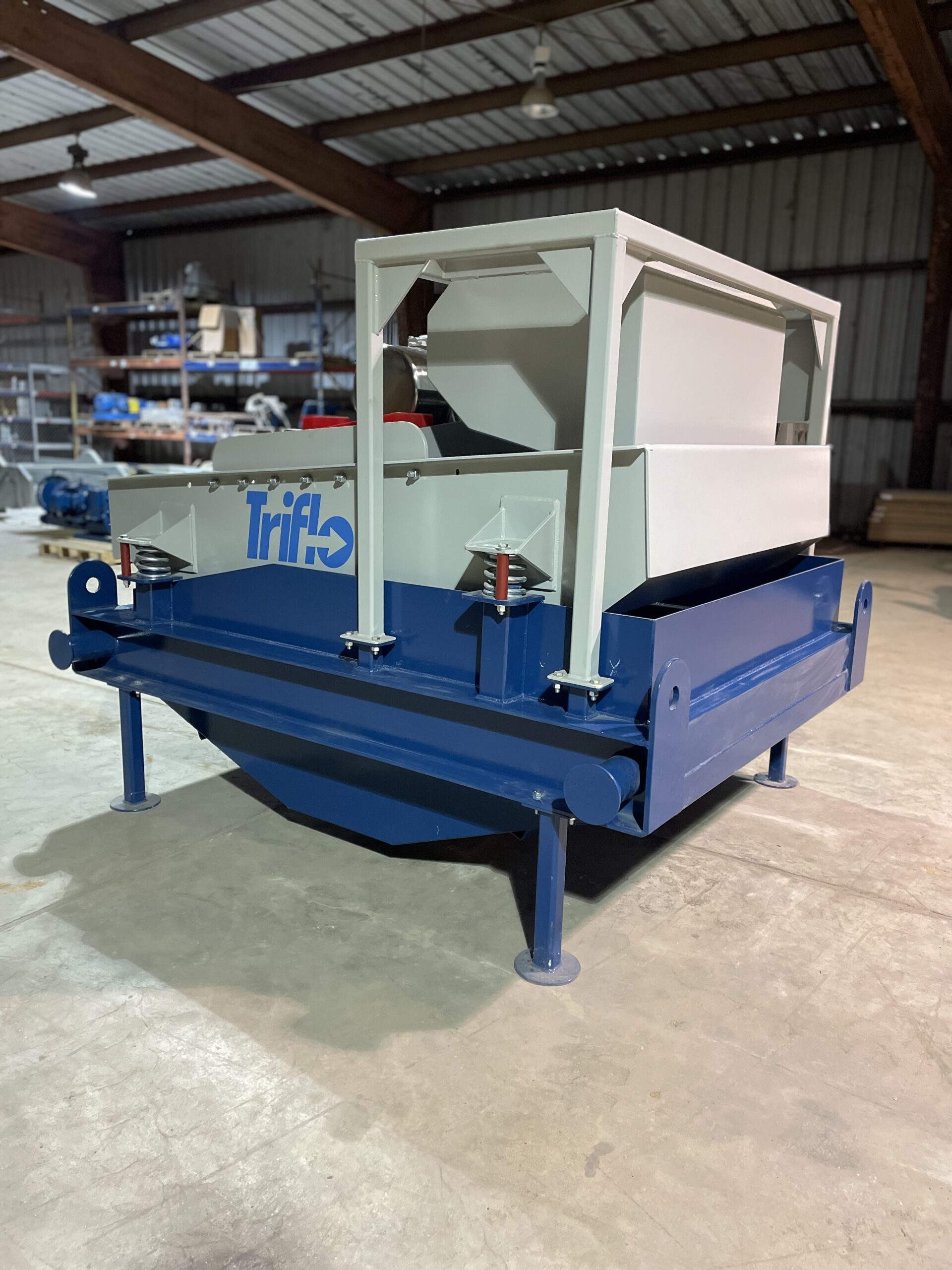

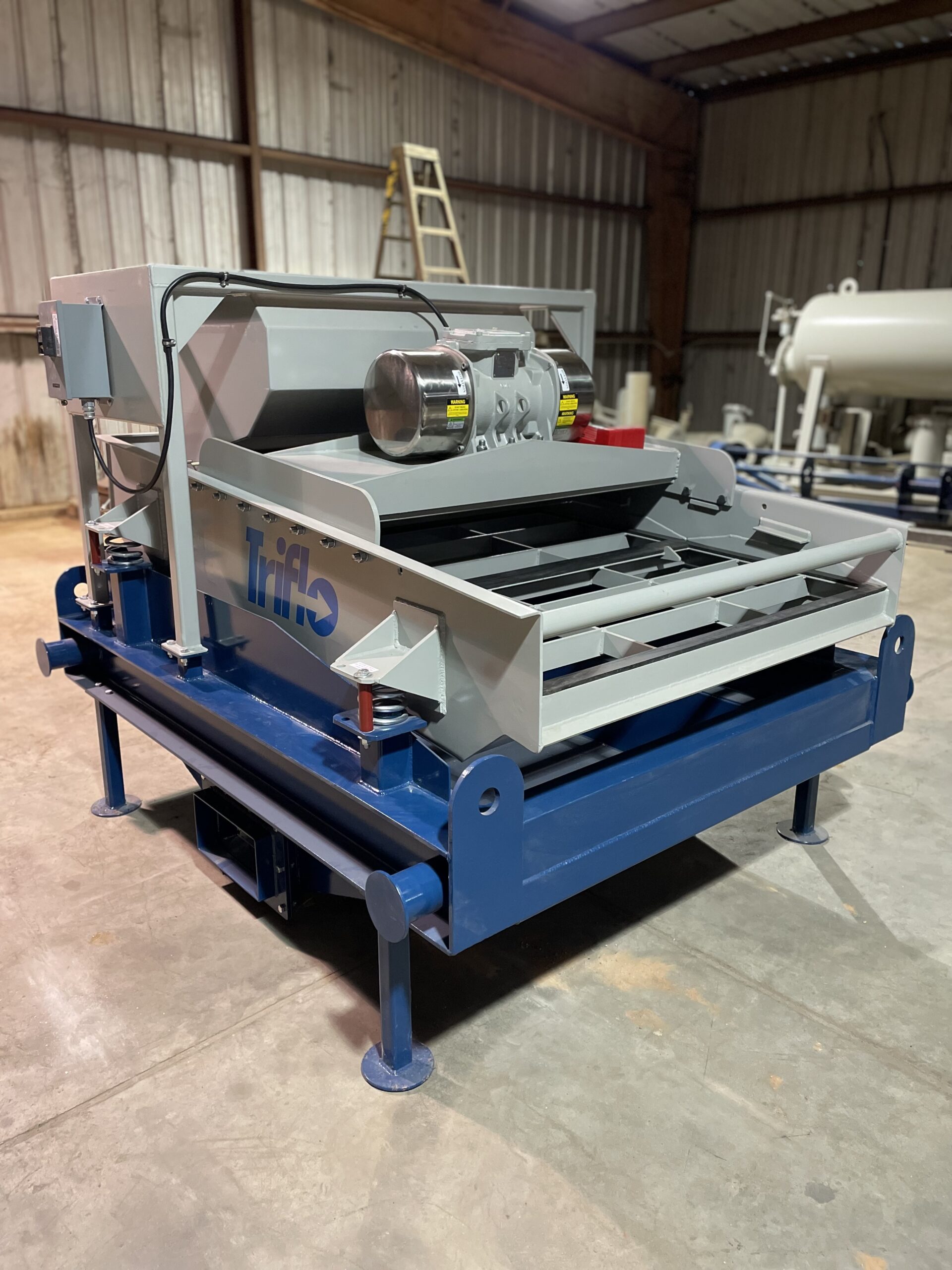

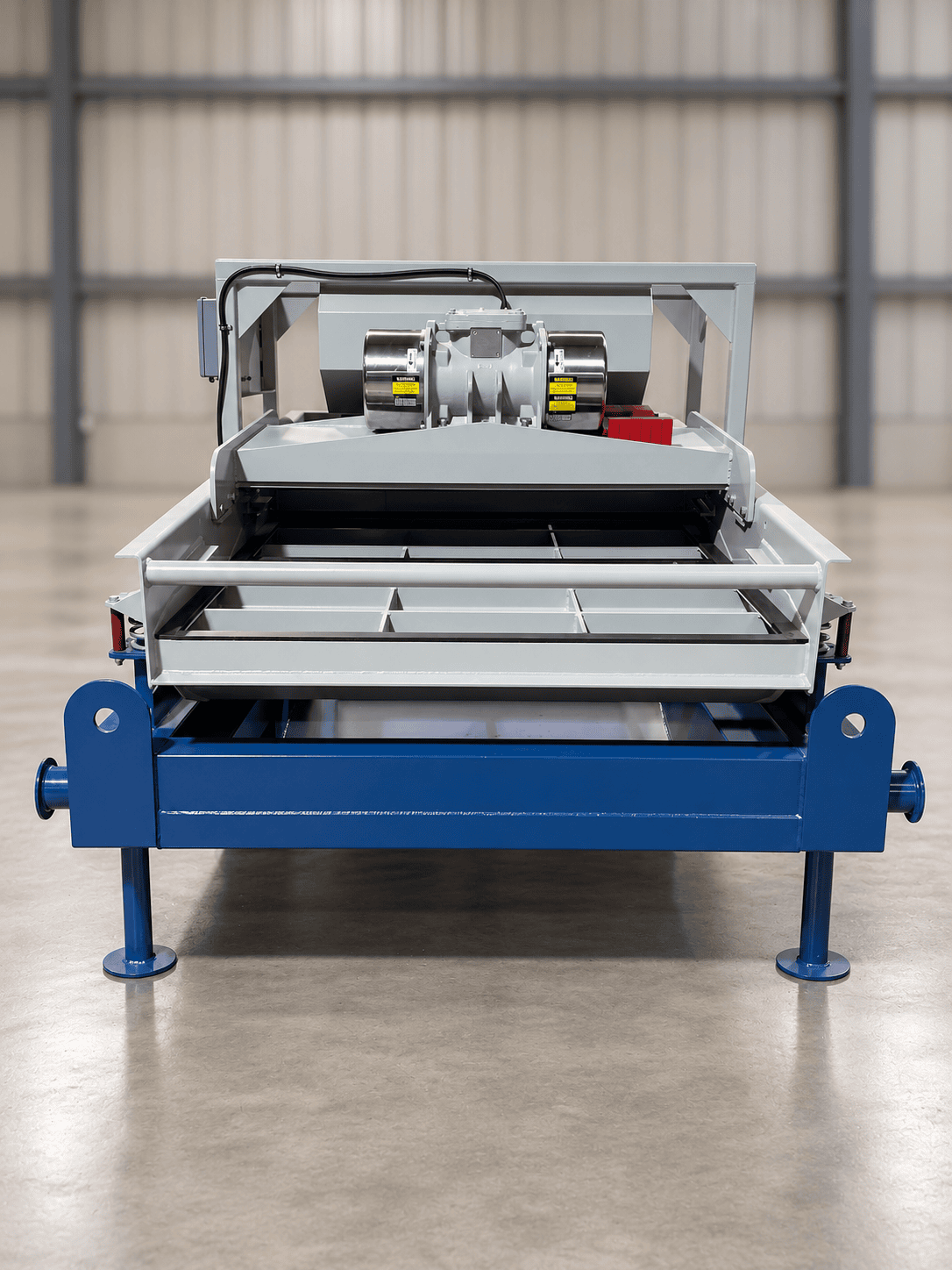

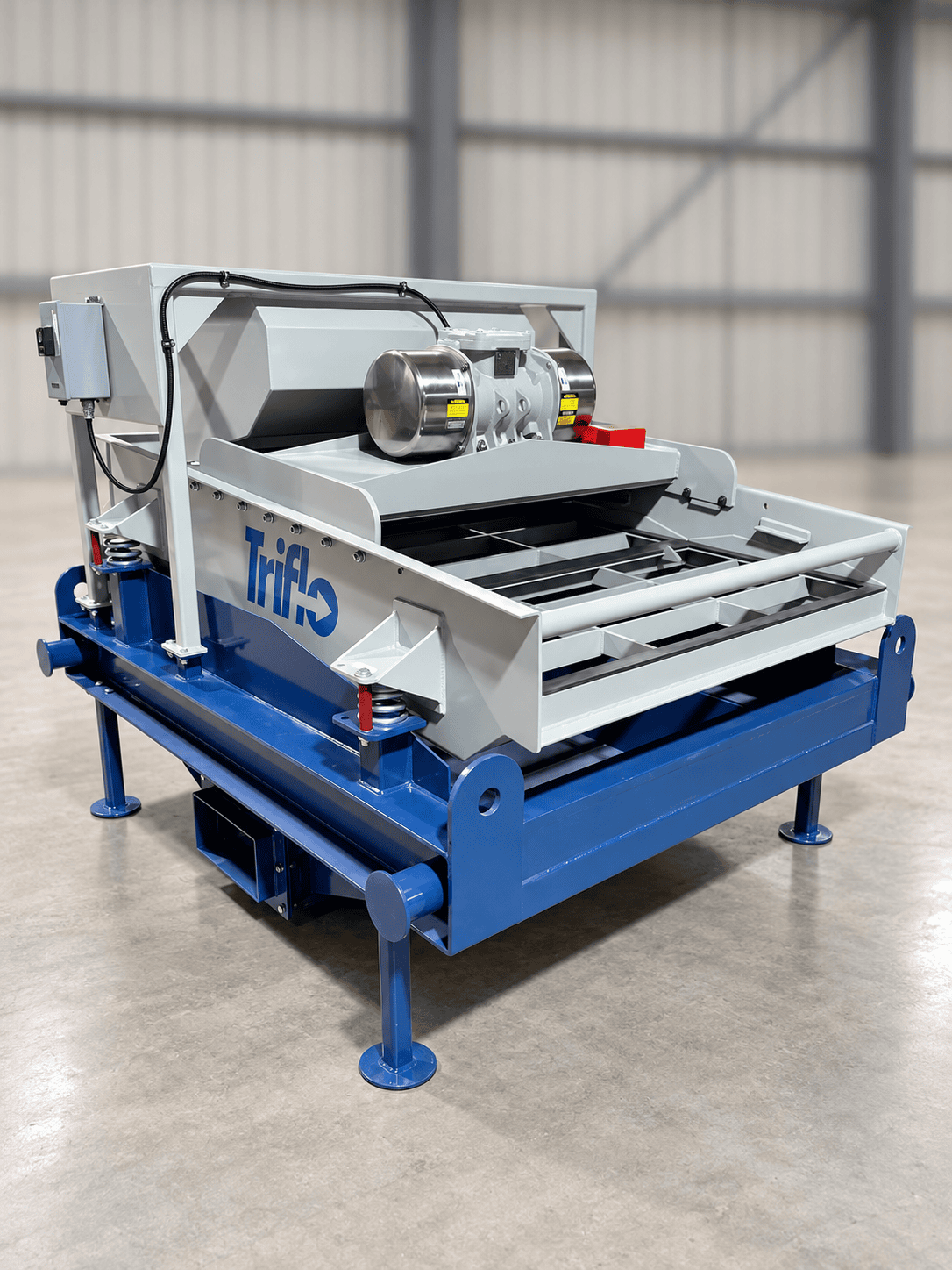

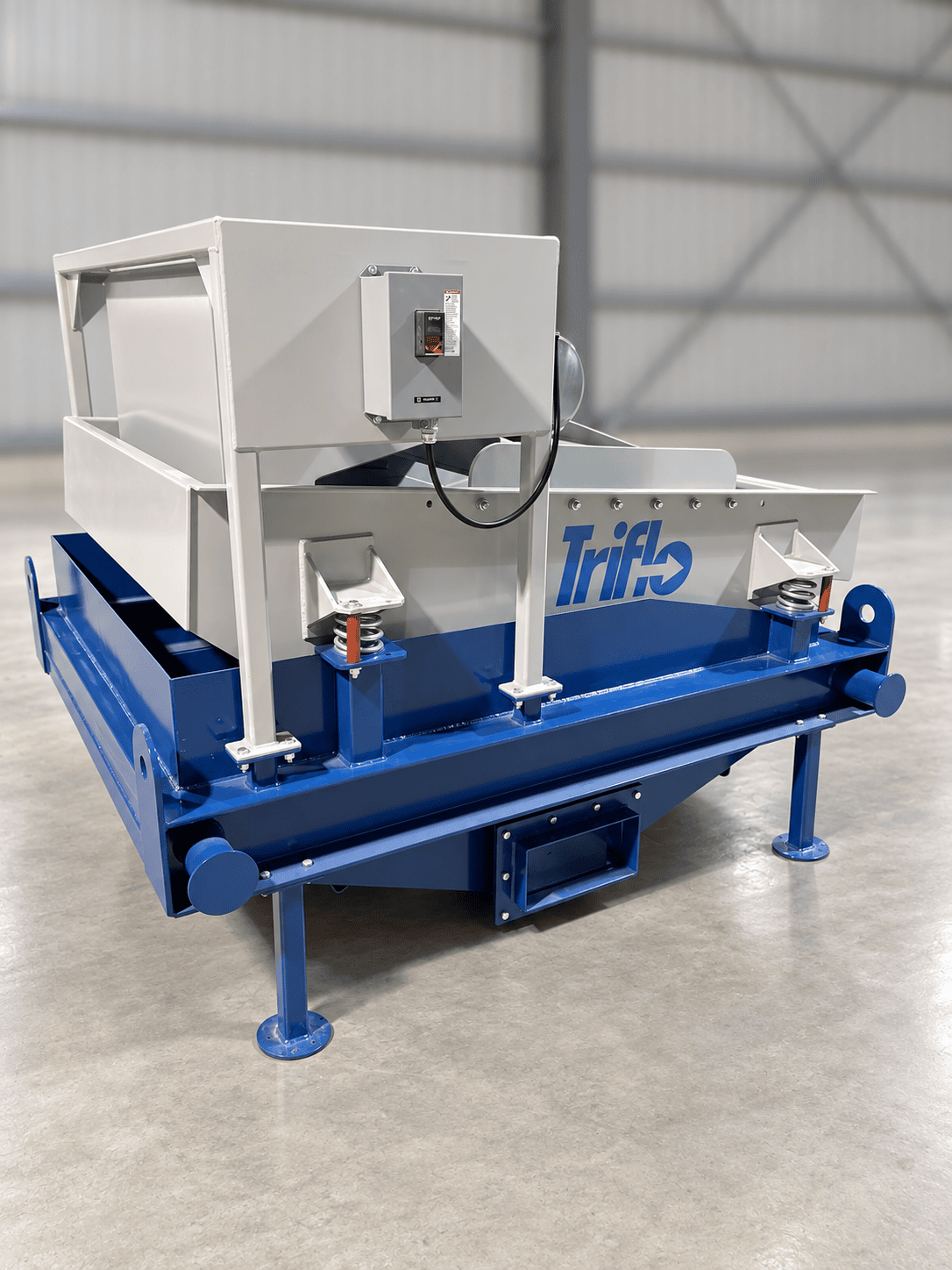

Elliptical Motion Shaker
The Triflo 146E is built to handle demanding separation tasks with minimal maintenance and consistent performance.
Outfitted with three screens, it delivers over 24 ft² of total screening area, providing reliable throughput for a wide range of applications.
Elliptical motion ensures smoother cuttings conveyance and less aggressive vibration, making it ideal for operations that prioritize fluid recovery and minimal screen wear.
Built in-house for performance and serviceability, the 146E is a solid choice for contractors who need durability without sacrificing efficiency.
Every shaker we make is assembled, tested, and supported by our team.
From Fab Shop to Field Site
Specifications
Weight and Dimensions
- Weight: 2228 lbs. (1010 kg)
- Length: 8 ft. 6 in. (2.6 m)
- Width: 5 ft. 6 in. (1.7 m)
- Height: 3 ft. 9 in. (1.1 m)
Screens
- # of Screens: 3
- Screen Size: 25" x 49.3"
- Screen Type: Pre-tensioned
- Available mesh sizes: 3 - 400 Mesh
- Shaker Bed Area: 24 ft² (2.3 m²)
General
- Power Requirements: 67 AMPS
- Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining
- Frame Type: Skidded
- Process Rate: 500 GPM
- Cut Point:
Optional Additions
- Winterization:
- Branding: Custom Colors and Logos
- Electrical: XP Package
Designed to handle abrasive, high-solids applications—from jobsite slurry to grain and grit.
Industrial-Grade Separation, Wherever It's Needed
Drilling Fluid Conditioning
Removes solids from drilling slurries in HDD, water well, and civil construction to extend fluid life by maintaining integrity and reduce wear on downstream equipment.
Tank and Pit Cleaning
Separates settled solids from tank bottoms and pit floors during pump-out or washdown. The smooth elliptical motion keeps flow consistent without over-agitating thick sludge.

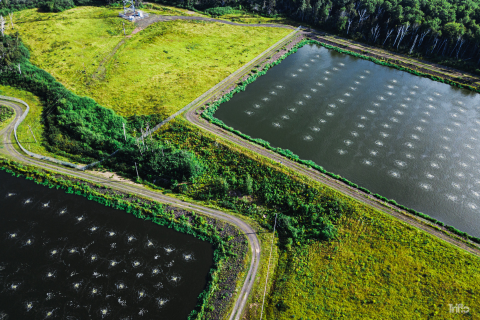

Wastewater Screening
Screens solids from overflow or bypass systems to prevent excess solids from entering waterways. Commonly used to relieve overloaded settling ponds, enabling the recovery and reuse of manure-rich water.
Agricultural Screening
Sifts corn, grain, or feedstock to remove clumps, husks, and debris before processing or packaging.

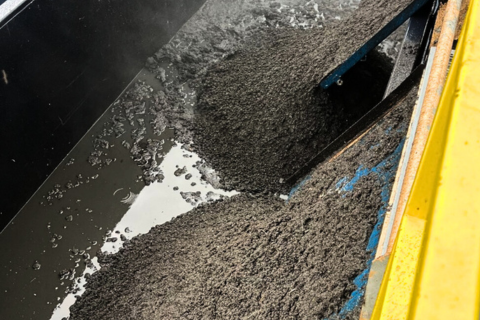

Slurry Separation
Handles high-solids slurries in remediation, mining, or washdown systems to reduce disposal volume.
Fluid Reclamation
Screens recycled or stored fluids for reuse during extended runs in trenchless, geothermal, and utility work.
