MFS 4000S
Powering Mud Management for Underground Success.
Built for the Bore.
Designed for precision solids management in Horizontal Directional Drilling, microtunneling, and similar trenchless operations, the MFS 4000 offers a mid-size solution that balances power and portability. It delivers the flow capacity and separation efficiency necessary for longer, more challenging bores, removing particles as small as 24 microns. With a continuous processing rate of 600 GPM and a compact footprint, this system is perfect for contractors who need reliable performance without sacrificing space or uptime. From busy urban sites to remote field locations, the MFS 4000 easily integrates with a variety of drilling rigs to keep fluids clean and projects moving forward.
Consistent Performance
Equipped with two centrifugal pumps, the MFS 4000 maintains steady and consistent flow, ensuring balanced pressure throughout the system. This optimizes performance at every stage of solids separation for efficient and reliable operation. Four stationary mud guns provide continuous, powerful agitation throughout the tank, preventing sedimentation and keeping solids in suspension. The result is a uniform, high-quality mud consistency that supports more efficient drilling and improved overall performance.
features
Mid-Size Versatility

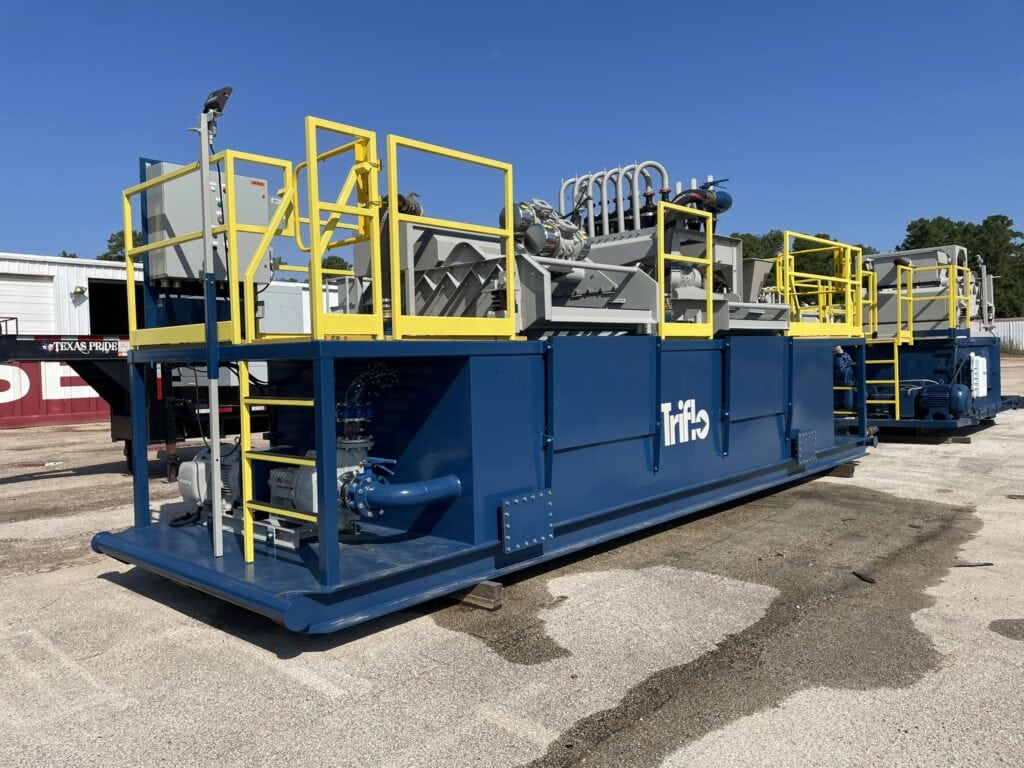

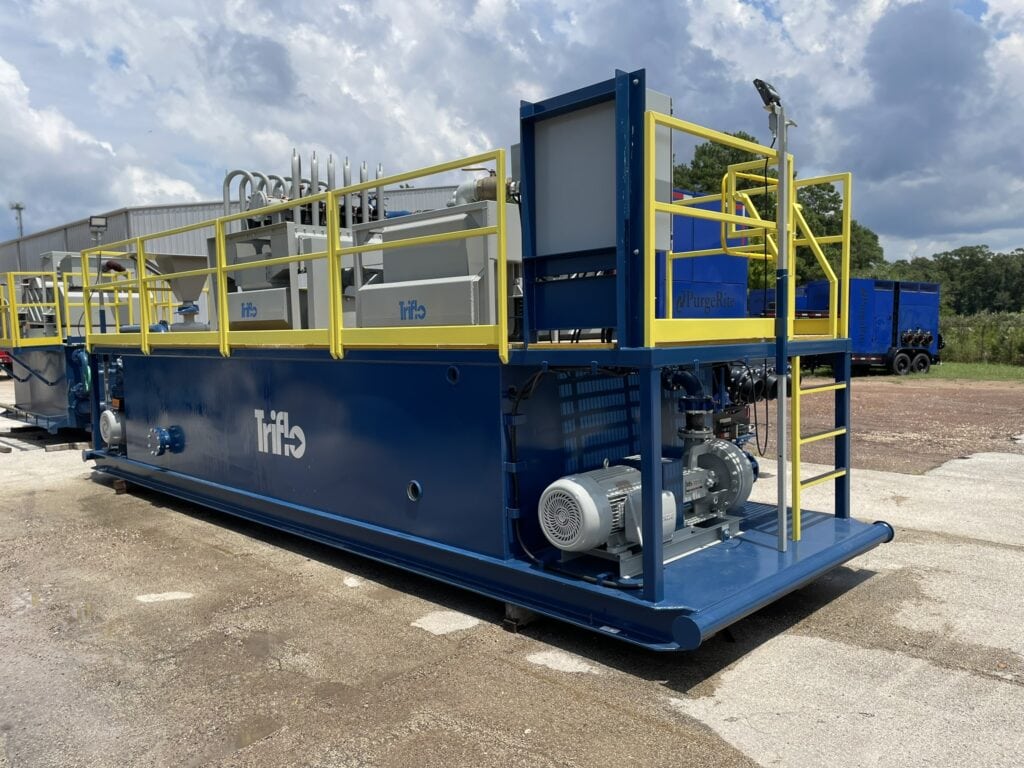

Designed with a mid-size, skid-mounted footprint, the MFS 4000 integrates seamlessly with a variety of drilling rigs and support systems. Its 600 GPM continuous processing rate ensures steady mud circulation and helps minimize downtime on the job site.
Fine Solids Targeting

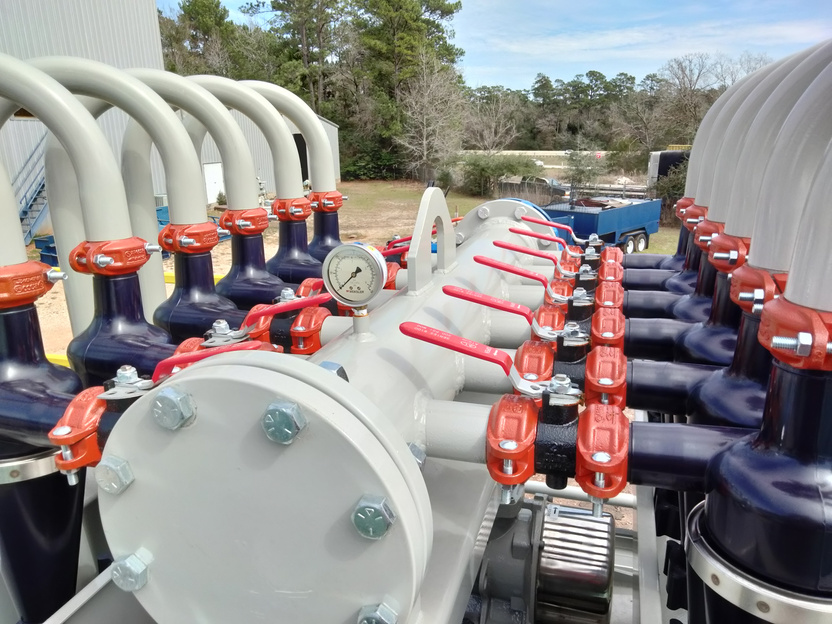

Twelve 4-inch hydrocyclone desilters remove solids down to 24 microns, targeting fine particles that pass through initial screening. The process keeps drilling fluid cleaner, minimizes equipment wear, and supports steady, reliable performance.
CLEAN CUT SCREENING
The MFS 4000 combines two custom designed shakers for maximum efficiency. A linear motion scalping shaker quickly removes oversized solids, while an elliptical motion shaker delivers precision screening for a consistently clean, high-quality fluid output.
Specifications
Weight and Dimensions
- Weight: 21500 lbs. (9525 kg)
- Length: 27 ft. (8.2 m)
- Width: 7 ft. 10 in. (2.4 m)
- Height: 10 ft. 5 in. (3.2 m)
Tank Capacities
- Max Capacity: 3961 gal (14.99 kL)
- # of Tanks: 2
- Scalper Tank: 1823 gal (6.9 kL)
- Desilter Tank: 2138 gal (8.09 kL)
Equipment
- SHALE SHAKERS:
- 1 TFI 146L Linear Motion Scalping Shaker
- 3 Screens Per Shaker
- Shaker Bed Area 24 ft² (2.3 m²)
- Screen Size 25" x 49.3"
- 1 TFI 146E Elliptical Motion Shaker
- 3 Screens Per Shaker
- Shaker Bed Area 24 ft² (2.3 m²)
- Available mesh sizes: 3 - 400 Mesh
- DESILTER:
- 12 4-in (10.2 cm) Hydrocyclones
- PUMPS:
- 1 4x5 250 Series Centrifugal Pumps with 40HP Electric Motor
- 1 4x5 250 Series Centrifugal Pumps with 50HP Electric Motor
- MUD GUNS:
- 4 Stationary Mud Gun
- HOPPER:
- 1 TFI 4 in. Mud Hopper with Venturi Jet
General
- Inlet Size: 4 in. (10.2 cm)
- Outlet Size: 4 in. (10.2 cm)
- Control Panel: Centralized Weatherproof NEMA 4x Control Panel
- Power Requirements: 135 AMPS
- Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining
- Frame Type: Skidded
- Process Rate: 600 GPM
- Cut Point: 24µ
- Lighting: 2 Telescoping LED Work Lights
Optional Additions
- Pit Pump: TFI 4 in. Semi-Submersible
- Generator: 160 kW 460v/60Hz
- Trailor: Gooseneck/Pintle/Integrated
- Wired Remote: Pit Pump/Charge Pump
- Winterization: Tank Heaters, Pipe Insulations +
- Branding: Custom Colors and Logos
- Electrical: XP Package
