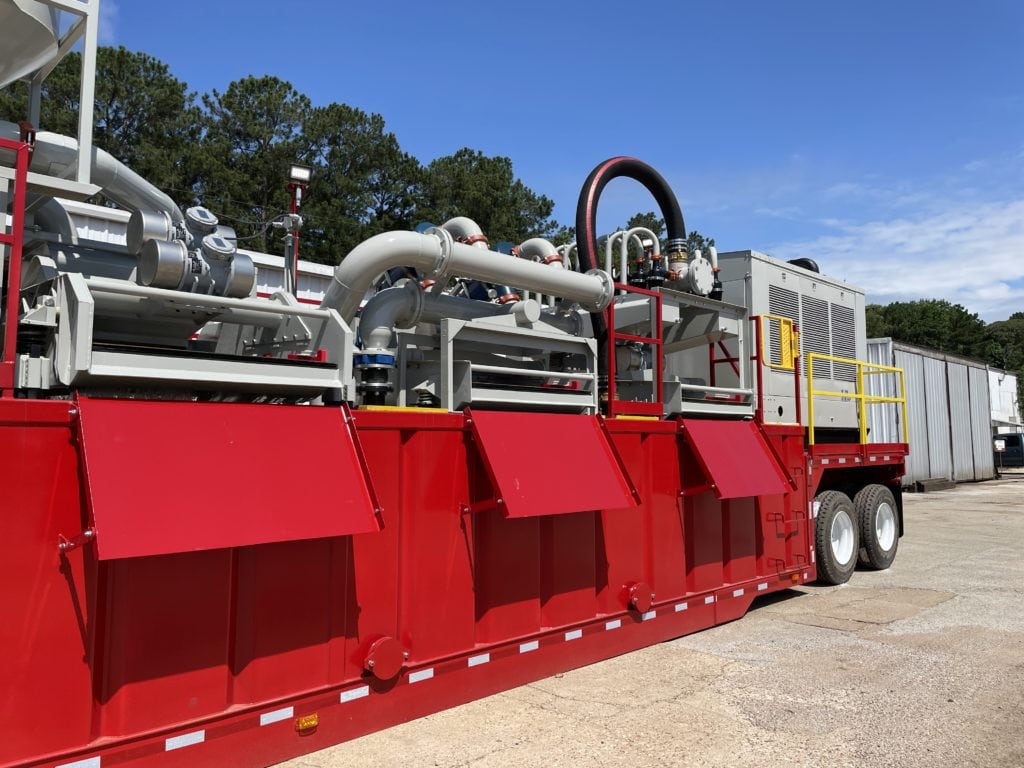

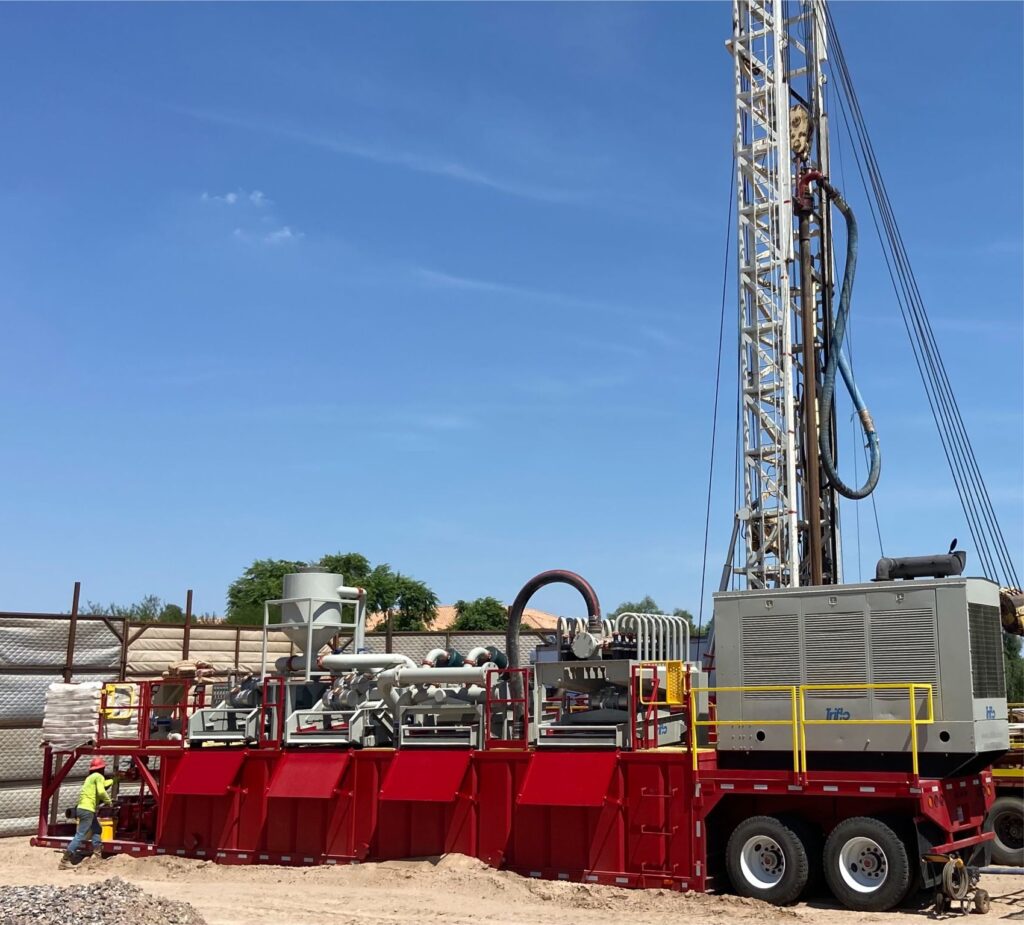

MFS 8000R
Built to Move More Mud—Faster.
Built for Big Jobs
Built for high-volume operations across HDD, oil & gas, and large-scale civil construction, the MFS 8000R is engineered to keep pace with the most demanding drilling environments. With a 1,000 GPM throughput capacity, over 8,000 gallons of onboard tank volume, and more than 100 square feet of shaker bed area, it delivers multi-stage solids control that keeps crews drilling efficiently and fluid clean from start to finish.
Designed to Move When You Do
The MFS 8000R’s rockover design combines rugged durability with unmatched mobility. Easily transported between jobsites, this system slashes downtime and keeps your operation on schedule—ideal for contractors who demand fast deployment and without sacrificing performance.
features
Multi-stage separation
Equipped with two linear motion shakers for coarse screening and two elliptical motion shale shakers for finer separations—maintaining high mud quality across the most demanding conditions.
optimized Solids Separation
Featuring two 10-inch desander hydrocyclones and sixteen 4-inch desilter hydrocyclones, this system efficiently captures both coarse and fine solids, ensuring optimal fluid quality while extending equipment longevity.
EASY TRANSPORT & SETUP
Rockover design allows the unit to be tilted for effortless transport and rapid deployment. Built as a nonpermit load, it simplifies logistics, reducing transportation costs and setup time for quick, efficient mobilization.
Specifications
Weight and Dimensions
- Weight: 61980 lbs. (28114 kg)
- Length: 53 ft. (16.2 m)
- Width: 8 ft. 6 in. (2.6 m)
- Height: 13 ft. 6 in. (4.7 m)
Tank Capacities
- Max Capacity: 8200 gal (31 kL)
- # of Tanks: 3
- Scalper Tank: 3690 gal (13.9 kL)
- Desander Tank: 2406 gal (9.1 kL)
- Desilter Tank: 2104 gal (7.9 kL)
Equipment
- SHALE SHAKERS:
- 2 TFI 146L Linear Motion Shakers
- 2 TFI 146E Elliptical Motion Shakers
- 3 Screens Per Shaker
- Shaker Bed Area 24 ft² (2.3 m²)
- Screen Size 25" x 49.3"
- Available mesh sizes: 3 - 400 Mesh
- DESANDER:
- 2 10-in (25.4 cm) Hydrocyclones
- DESILTER:
- 16 4-in (10.2 cm) Hydrocyclones
- PUMPS:
- 3 5x6 250 Series Centrifugal Pumps with 50HP Electric Motors
- 1 5x6 250 Series Centrifugal Pumps with 30HP Electric Motors
- MUD GUNS:
- 5 Stationary Mud Guns
- HOPPER:
- 1 TFI 4 in. Mud Hopper with Venturi Jet
General
- Inlet Size: 8 in. (20.3 cm)
- Outlet Size: 6 in. (15.2 cm)
- Control Panel: Centralized Weatherproof NEMA 4x Control Panel
- Power Requirements: 245 AMPS
- Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining
- Frame Type: Rockover
- Process Rate: 1000 GPM
- Cut Point: 24µ
- Lighting: 3 Telescoping LED Work Lights
Optional Additions
- Generator: 220 kW 460v/60Hz
- Trailor: Skidded/Integrated
- Winterization: Tank Heaters, Pipe Insulations +
- Branding: Custom Colors and Logos
- Electrical: XP Package
