Centrifugal Pumps
Triflo 250 Series
Advanced Hydraulic Design
The Triflo 250 Series features a reinforced concentric casing paired with an open vane impeller to reduce turbulence, vibration, and internal recirculation. This optimized hydraulic design improves efficiency when handling mud, slurry, and solids-laden fluids while minimizing wear on internal components for longer service life.
High-Strength Shaft & Seal Integrity
A high-strength alloy steel shaft minimizes deflection under load, maintaining proper alignment and protecting seal integrity over time. This robust shaft design supports reliable operation in demanding drilling, environmental, and industrial applications.
Heavy-Duty Structural Construction
A rigid cast-iron pedestal frame provides the strength required to withstand high piping loads and continuous operation. Internally, a heavy-duty bearing assembly is engineered to handle high radial and thrust loads, delivering stable performance and extended bearing life.
Configurable for Your Application
- Open vane impeller for slurry and solids handling
Optional semi-open impeller for specialized flow conditions
Optional shearing ring for mud shearing applications
Mechanical seal or packing options for abrasive or corrosive fluids
PERFORMANCE CURVES

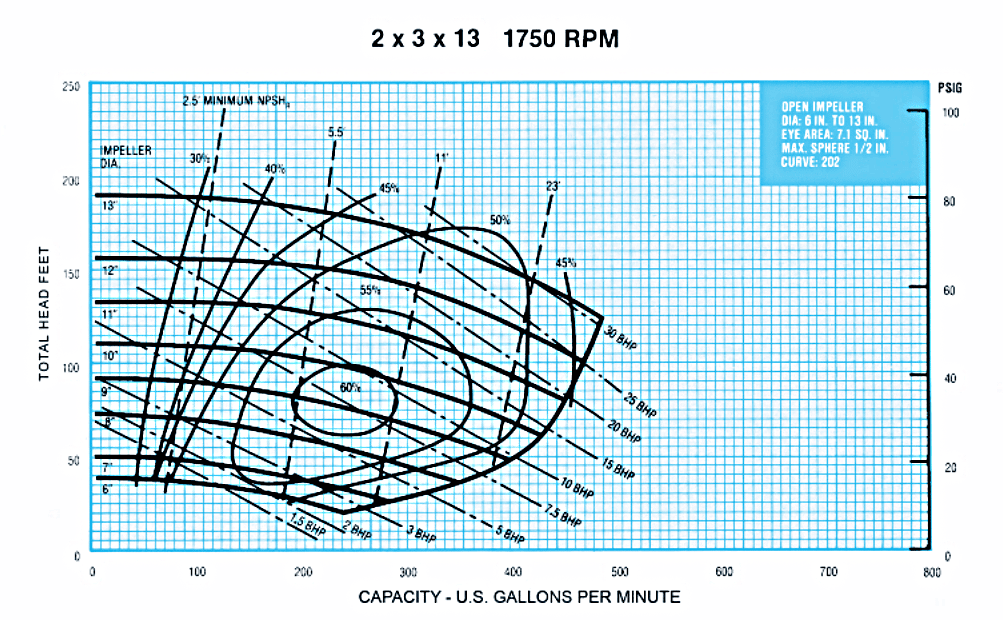

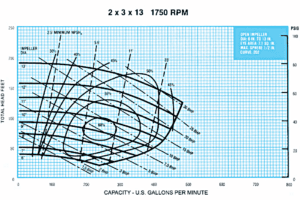

2 X 3 X 13

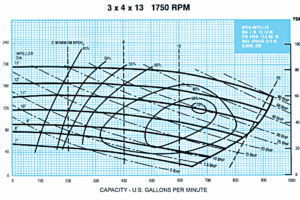

3 X 4 X 13

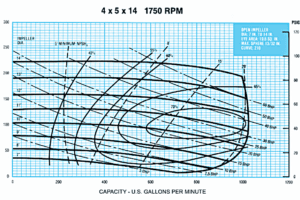

4 X 5 X 14

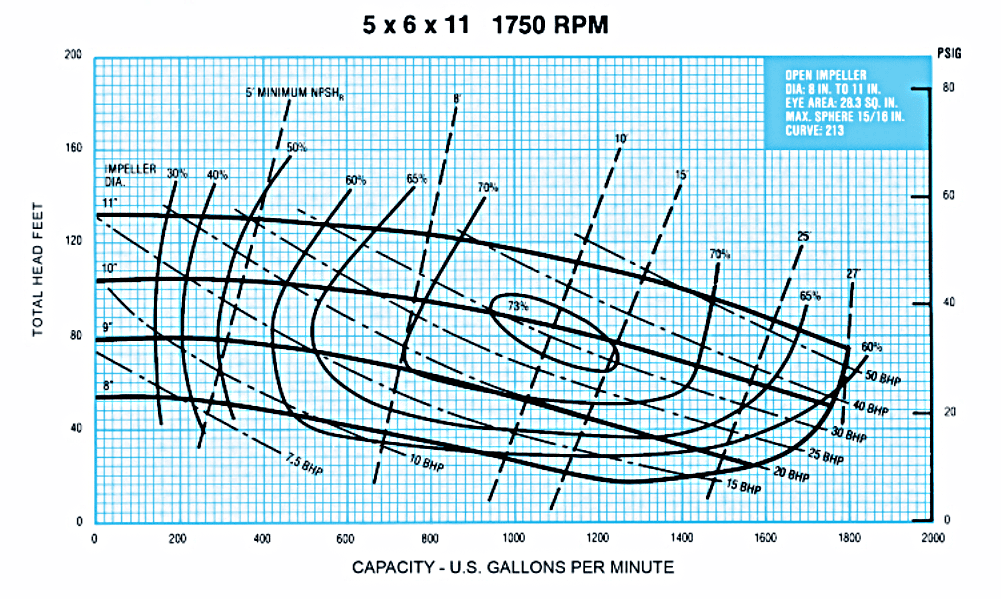

5 X 6 X 11

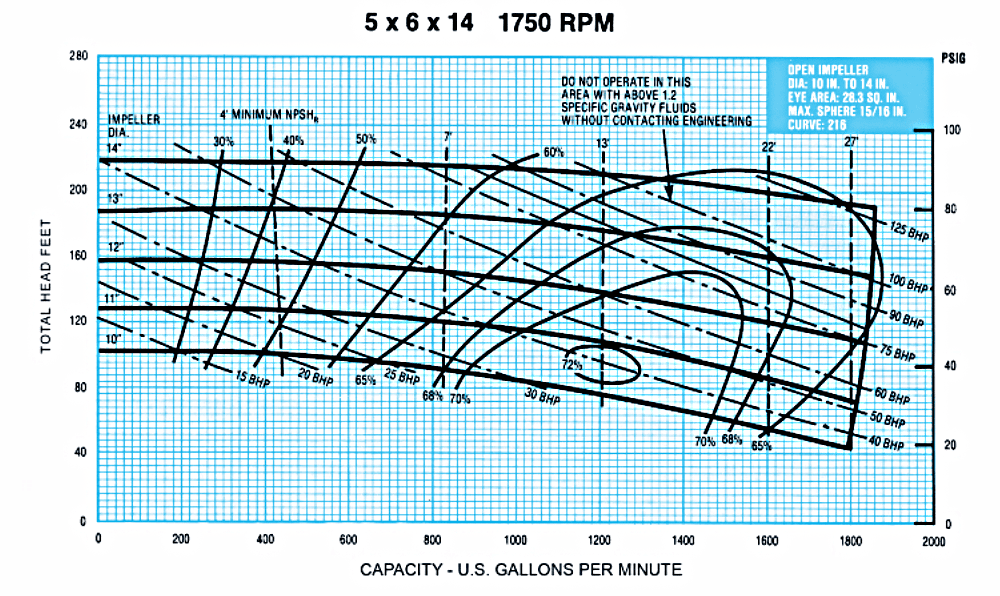

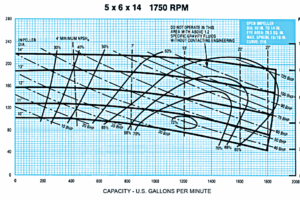

5 X 6 X 14

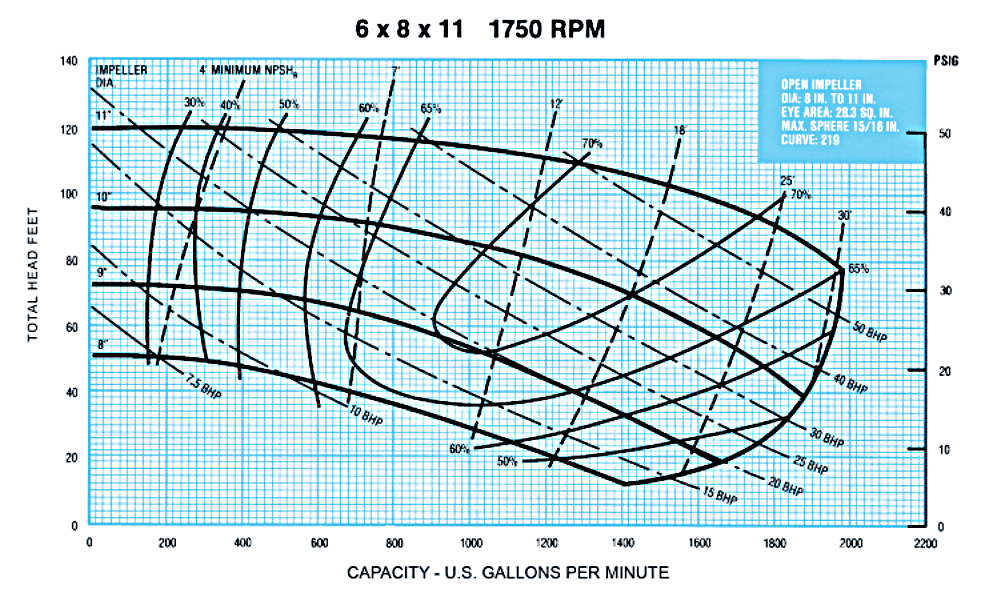

6 X 8 X 11

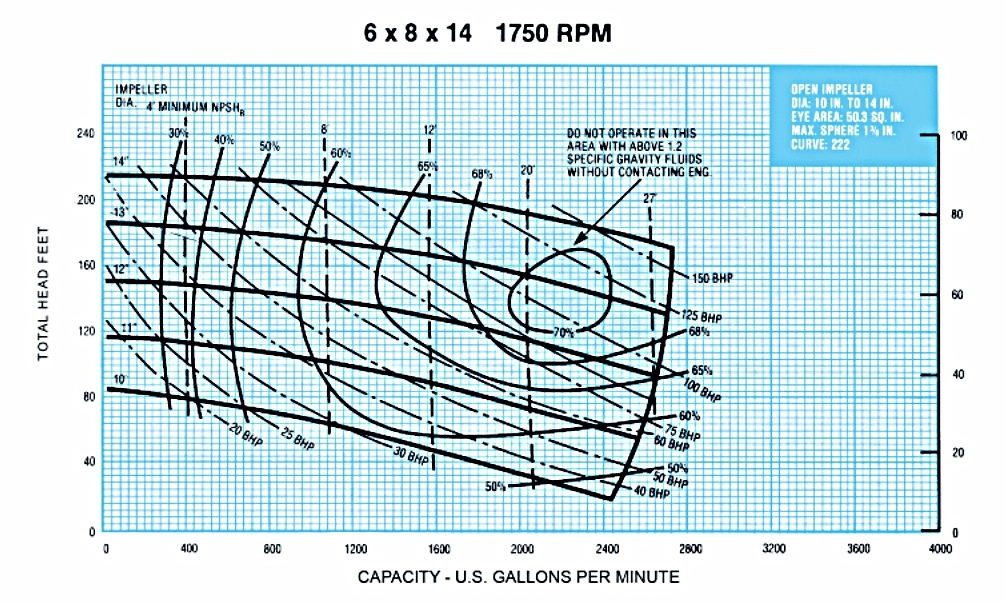

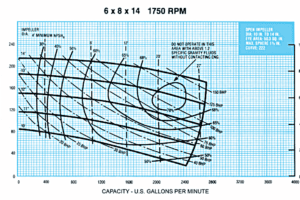

6 X8 X 14
Talk to triflo
Need help selecting the right configuration for your application?
Contact us to discuss sizing, impeller options, and system integration.
