ES 1000R
Cleaner Output. Greener Impact.
Sustainable Solutions

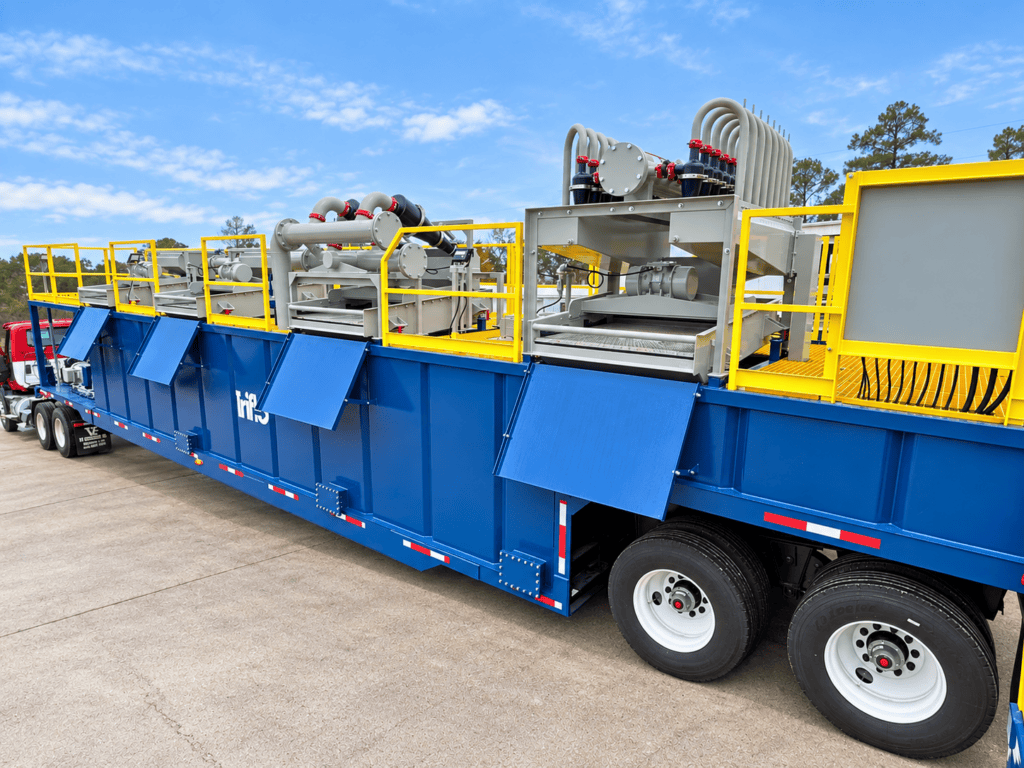

The Triflo ES 1000 Rockover is built for efficient, chemical-free solid-liquid separation with a 24-micron cut point. By removing fine solids without the use of polymers or coagulants, it helps reduce disposal volumes, recover reusable water, and simplify regulatory compliance.
Mounted on a rockover platform, the system is designed for fast mobilization and simplified transport between job sites—making it a practical, high-output solution for both short-term and long-term use.
Built for Versatility
With a capacity of up to 1,000 gallons per minute, the ES 1000 Rockover meets the high flow demands of large-scale dewatering jobs.
Ideal for applications like environmental remediation, dredging, pit cleanup, and tank bottom sludge or oil recovery, this system streamlines operations by reducing waste volume and improving water reuse.
features
DESIGNED TO MOVE
The Rockover design of the ES 1000 enables easy tilting for smooth transport and quick deployment. Designed as a non-permit load, it streamlines logistics, cutting down on transportation costs and reducing setup time for fast, efficient mobilization.
FINE SEPARATION. FAST FLOW.
Equipped with three 146E elliptical motion scalping shakers, paired with ten 4-inch desilter hydrocyclones and thirty 2-inch desilter hydrocylones, the ES 500 efficiently handles a wide range of solid sizes, adapting to diverse project needs.
MAXIMUM RECOVERY
Handling up to 1,000 GPM, the ES 1000 maximizes productivity and ensures efficient operation for highdemand projects like dredging, slurry management, environmental cleanup and wastewater treatment.
Specifications
Weight and Dimensions
- Weight: 53000 lbs. (24040 kg)
- Length: 52 ft. 10 in. (16.1 m)
- Width: 8 ft. 6 in. (2.6 m)
- Height: 10 ft. 7¼ in. (3.2 m)
Tank Capacities
- Max Capacity: 9454 gal (35.8 kL)
- # of Tanks: 3
- Scalper Tank: 4067 gal (15.4 kL)
- Desander Tank: 2845 gal (10.8 kL)
- Desilter Tank: 2542 gal (9.6 kL)
Equipment
- SHALE SHAKERS:
- 2 TFI 148E Elliptical Motion Shakers
- 4 Screens Per Shaker
- Shaker Bed Area 32 ft² (3 m²)
- Screen Size 25" x 49.3"
- 2 TFI 146E Elliptical Motion Shakers
- 3 Screens Per Shaker
- Shaker Bed Area 24 ft² (2.3 m²)
- Screen Size 25" x 49.3"
- Available mesh sizes: 3 - 400 Mesh
- DESANDER:
- 2 10-in (25.4 cm) Hydrocyclones
- DESILTER:
- 16 4-in (10.2 cm) Hydrocyclones
- PUMPS:
- 2 5x6 250 Series Centrifugal Pumps with 50HP Electric Motors
- 1 6x8 250 Series Centrifugal Pump with 75HP Electric Motor
- MUD GUNS:
- 2 Stationary Mud Guns
- AGITATORS:
- 3 10HP Agitators with 32" Paddle Blades
General
- Inlet Size: 8 in. (20.3 cm)
- Outlet Size: 6 in. (15.2 cm)
- Control Panel: Centralized Weatherproof NEMA 4x Control Panel
- Power Requirements: 270 AMPS
- Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining
- Frame Type: Rockover
- Process Rate: 1000 GPM
- Cut Point: 24µ
- Lighting: 3 Telescoping LED Work Lights
Optional Additions
- Generator: 275 kW 460v/60Hz
- Frame: Skidded
- Winterization: Tank Heaters, Pipe Insulations +
- Branding: Custom Colors and Logos
- Electrical: XP Package
Powering Progress
From Remediation to Recovery — The ES 1000R adjusts to your operation, maximizing output and minimizing waste.
