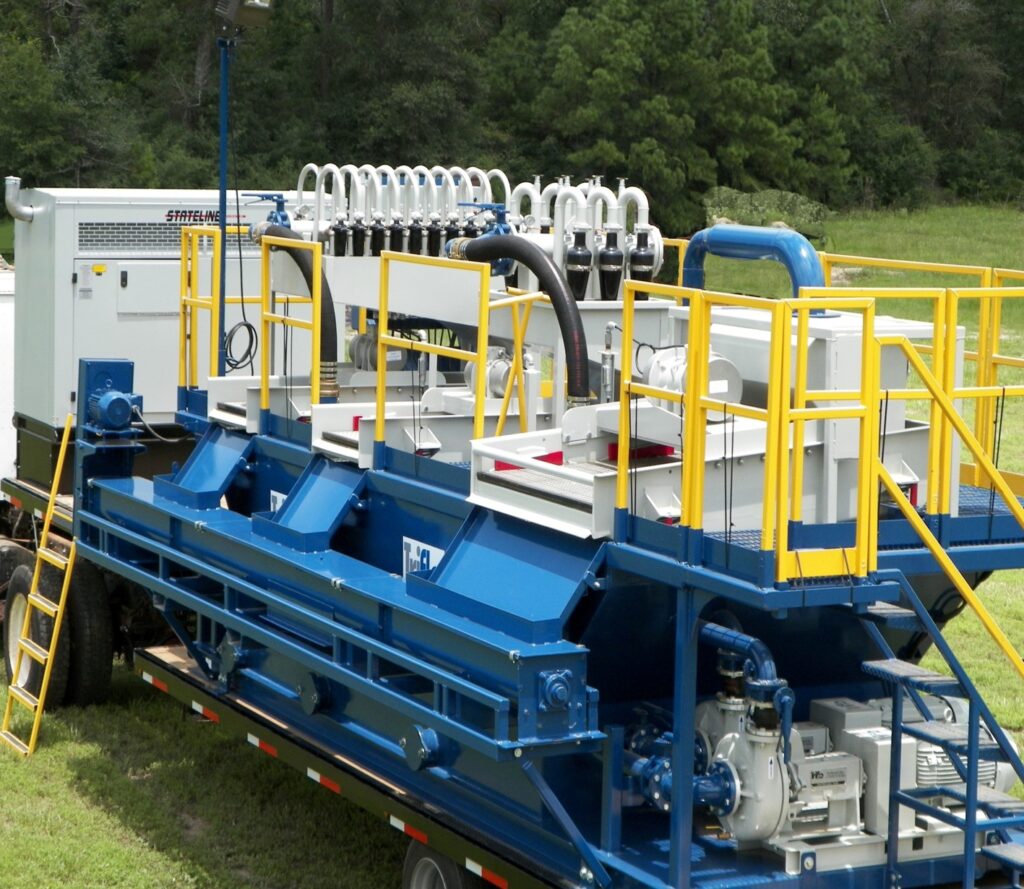

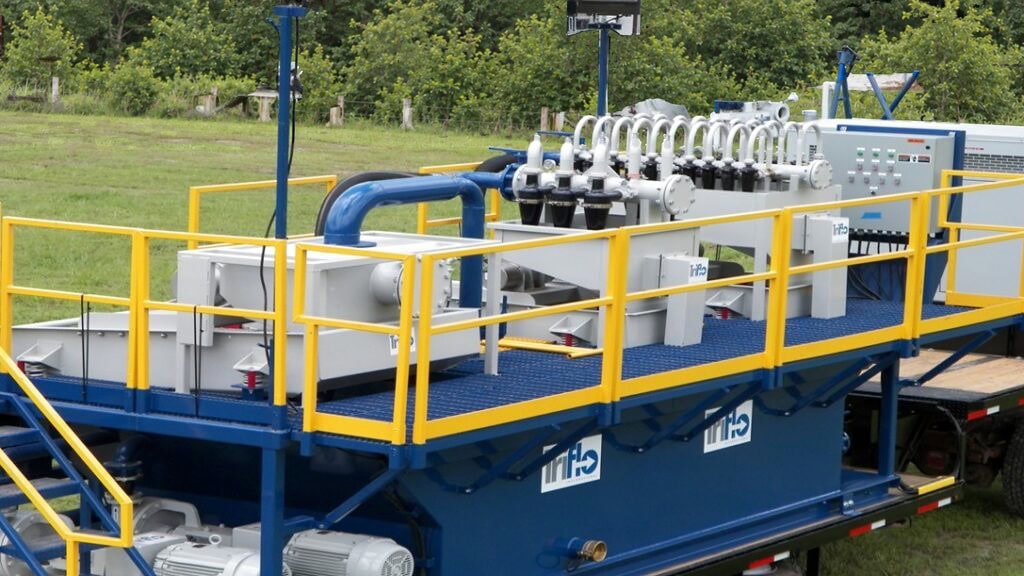

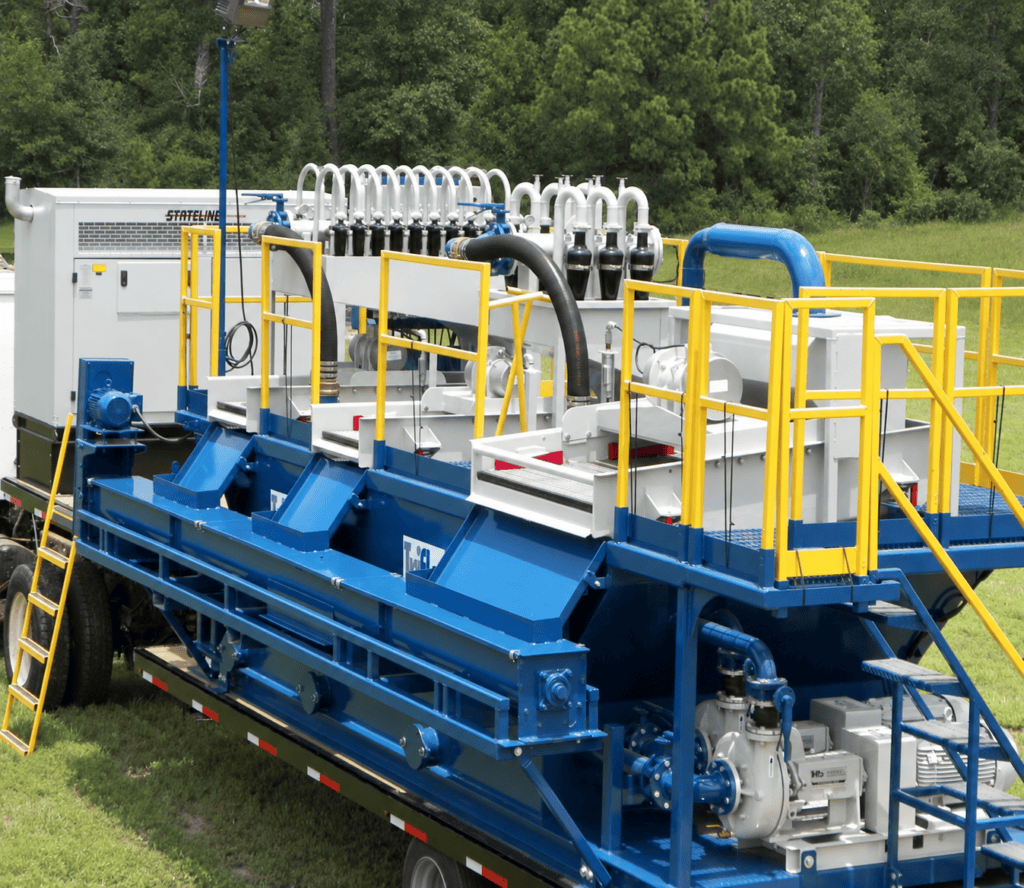

ES 300
Dewatering for Environmental and Industrial Projects
Built for Mobility
The Triflo ES 300 is designed with a space-saving, modular layout that integrates effortlessly with existing site equipment like directional drills, mud pumps, and dewatering systems. Its compact footprint and mobile frame allow for easy transportation and precise positioning, even in confined or remote work environments. Whether on a construction site or an industrial facility, the ES 300 adapts quickly to evolving operational needs.
Versatile Performance Across Environmental Applications
Engineered for reliability and adaptability, the ES 300 supports a wide range of environmental services including soil remediation, industrial cleaning, and wastewater treatment. Its user-friendly configuration simplifies setup and operation, helping crews stay productive and efficient. With its ability to streamline processes and support diverse workflows, the ES 300 is a powerful tool for maximizing performance on environmental jobsites.
features
MULTI-PHASE CONFIGURATION
The ES 300 combines an elliptical motion scalping shaker for larger particles along with two elliptical motion shale shakers for fine particle separation, offering a total shaker bed area of 48 ft². This setup ensures cleaner fluids and reduced waste.
OPTIMAL CLEANING EFFICIENCY
Equipped with six 4-inch desilter hydrocyclones and twenty 2-inch desilter hydrocyclones, the ES 300 effectively removes sand and coarse silts, achieving particle cut sizes as small as 10µ, producing dry solids.
COMPACT MODULAR DESIGN
Engineered for mobility and ease of setup, the ES 300 is ideal for deployment in tight spaces across industries such as soil remediation, industrial cleaning, construction dewatering, and wastewater treatment, offering reliable performance in diverse applications.
Specifications
Weight and Dimensions
- Weight: 18000 lbs. (8165 kg)
- Length: 20 ft. 5 in. (6.2 m)
- Width: 7 ft. 5 in. (2.3 m)
- Height: 9 ft. 8 in. (2.9 m)
Tank Capacities
- Max Capacity: 2699 gal (10.2 kL)
- # of Tanks: 3
- Scalper Tank: 944 gal (3.6 kL)
- Desilter Tank 1: 870 gal (3.3 kL)
- Desilter Tank 2: 885 gal (3.4 kL)
Equipment
- SHALE SHAKERS:
- 1 TFI 146E Elliptical Motion Shaker
- 3 Screens Per Shaker
- Shaker Bed Area 24 ft² (2.3 m²)
- Screen Size 25" x 49.3"
- 2 TFI 126E Elliptical Motion Shakers
- 2 Screens Per Shaker
- Shaker Bed Area 12 ft² (1.1 m²)
- Screen Size 25.13" x 36.88"
- Available mesh sizes: 3 - 400 Mesh
- DESILTERS:
- 6 4-in (10.2 cm) Hydrocyclones
- 20 2-in (5.1 cm) Hydrocyclones
- PUMPS:
- 2 4x3 250 Series Centrifugal Pumps with 30HP Electric Motors
- 1 4x3 250 Series Centrifugal Pump with 20HP Electric Motor
- MUD GUNS:
- 3 Stationary Mud Guns
General
- Inlet Size: 3 in. (7.62 cm)
- Outlet Size: 3 in. (7.62 cm)
- Control Panel: Centralized Weatherproof NEMA 4x Control Panel
- Power Requirements: 120 AMPS
- Corrosion Control: Chemical/Abrasion Resistant Mastic Tank Lining
- Frame Type: Skidded
- Process Rate: 300 GPM
- Cut Point: 10µ
- Lighting: 2 Telescoping LED Work Lights
Optional Additions
- Pit Pump: TFI 3 in. Semi-Submersible
- Generator: 120 kW 460v/60Hz
- Trailor: Gooseneck/Pintle/Integrated
- Wired Remote: Pit Pump/Charge Pump
- Winterization: Tank Heaters, Pipe Insulations +
- Branding: Custom Colors and Logos
- Electrical: XP Package
Your Dewatering Solution
Whether you're tackling remediation, dewatering, or industrial cleanup, the ES 300 is built to keep your operation moving forward.
